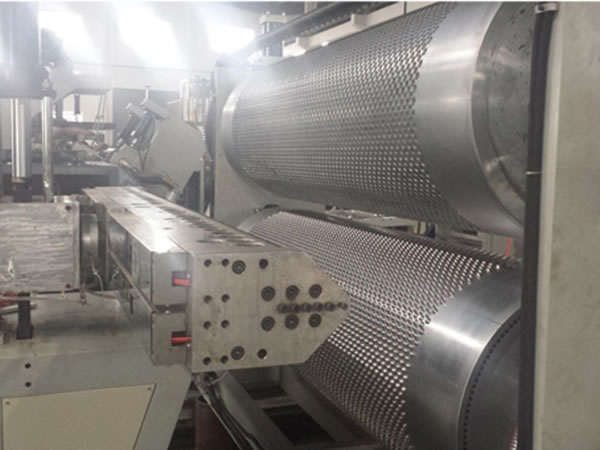

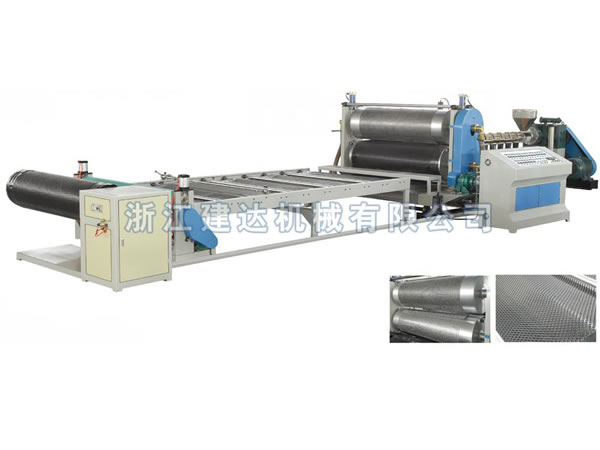

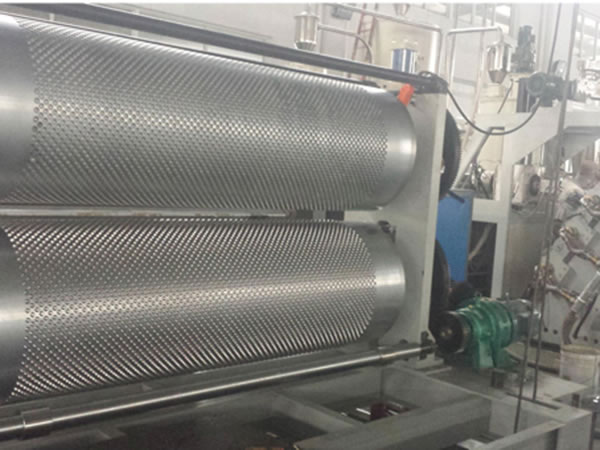

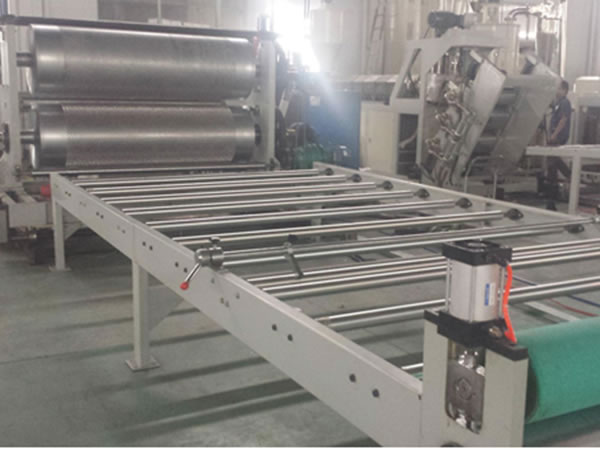

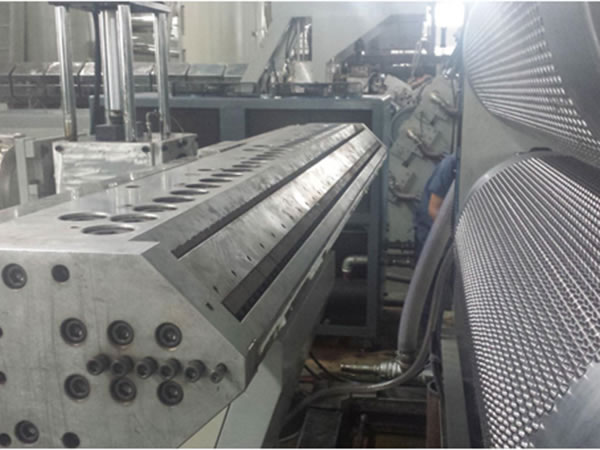

Drainage Plate Production Line
Description

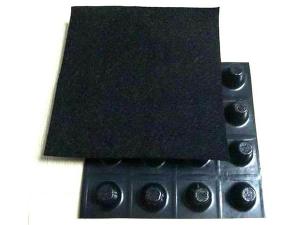

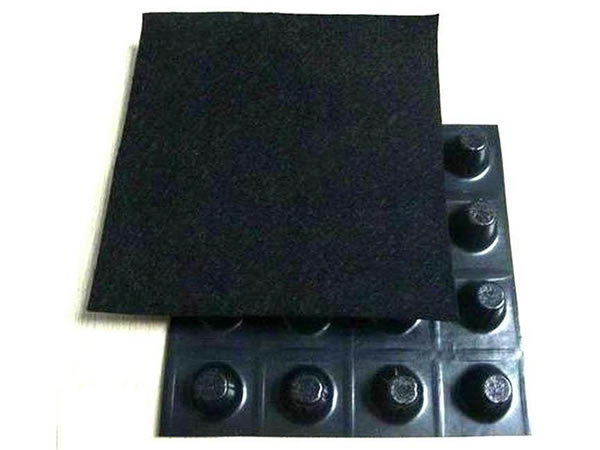

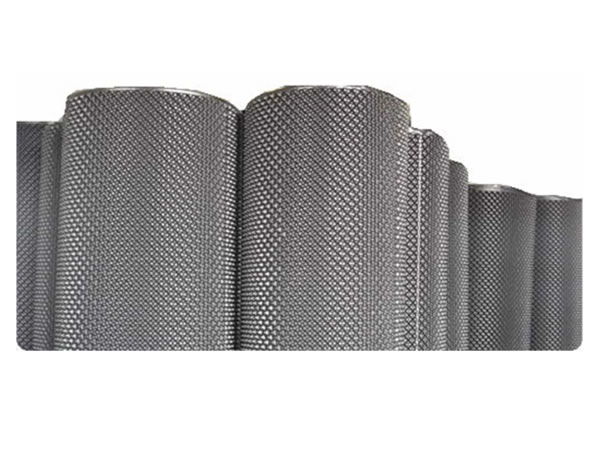

PE drainage plate production line is a type of polyethylene air bubble film machine, the drainage plate is water-proof and used for draining water.

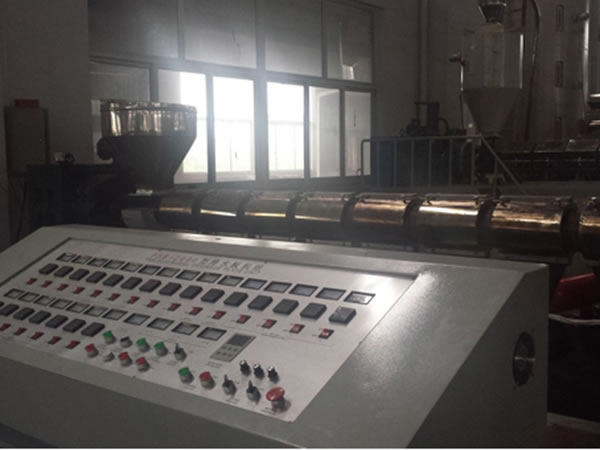

This plastic sheet extrusion line is controlled by PLC control system, with the features of stable running, low noise and high output.
Technical Parameters
| Model | JDPSA-120 | JDPSA-150 | JDPSA-180 |
| Screw diameter (mm) | Ø120mm | Ø150mm | Ø180mm |
| Sheet width | 2000mm | 3000mm | 4000mm |
| Sheet thickness | 0.32-0.8mm | 0.32-0.8mm | 0.32-0.8mm |
| Output | 250kg /h | 300kg /h | 600kg /h |
| Main motor power | 110kw | 160kw | 220kw |
| Total power | 155kw | 220kw | 300kw |
| Weight | 11000kg | 13000kg | 17000kg |
| Dimension | 16*5*3.2m | 16*6*3.2m | 16*7*3.2m |
