2 Layer Plastic Sheet Extruder

2 Layer Plastic Sheet Extruder

2 Layer Plastic Sheet Extruder

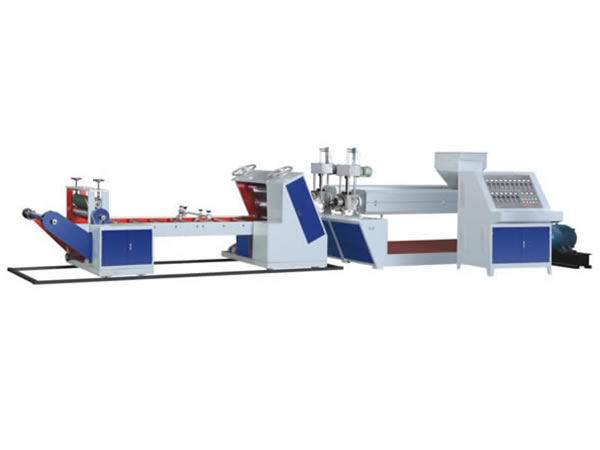

JDSP-660D

JDSP-660D series double layer plastic sheet extruder is designed based on traditional single layer plastic sheet extruding machines, and it also utilizes advanced production technologies from the world.

Application:

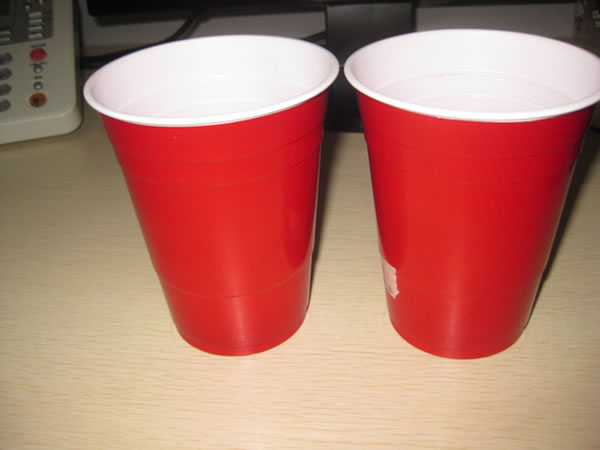

JDSP-660D 2 layer plastic sheet extruder integrates the functions of PP sheet extruders, PE extruding machines, and PS extruders. It is suitable for manufacturing PP, PE and PS plastic sheets which are commonly used for making drinking cups, ice-cream cups, jelly cups and many other kinds of plastic containers.

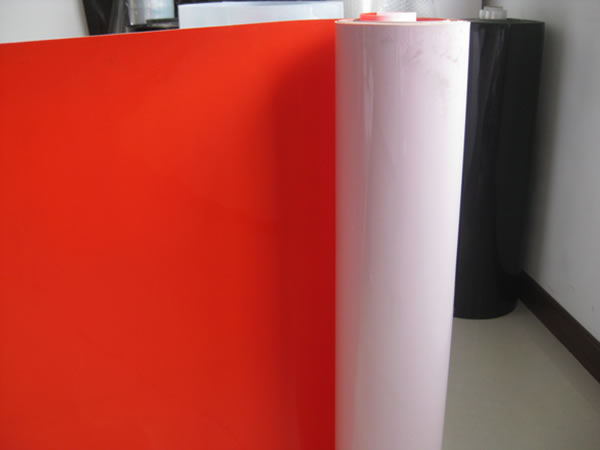

Finished plastic sheets have two layers, and these two layers have different colors.

Features of JDSP-660D 2 Layer Plastic Sheet Extruder:

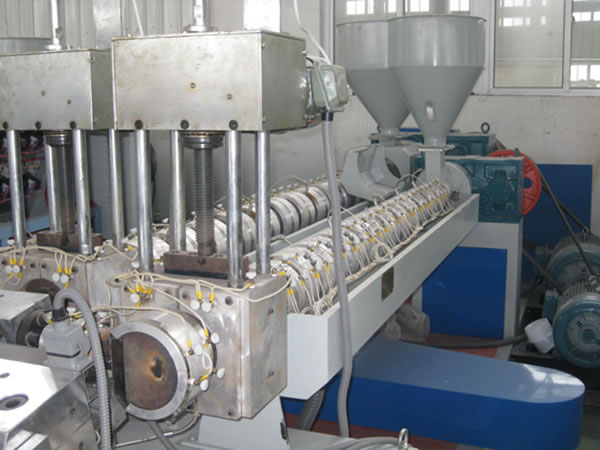

1. Nitrogen treated 38CrMoA is adopted to make screws and cylinders, thus ensuring perfect hardness, strong corrosion resistance and long lifetime, etc.
2. The ratio of the length and diameter ensures the plastic performances of sheets.
3. Net-changer design guarantees a high productivity and convenient operation.

Technical Parameters of JDSP-660D 2 Layer Plastic Sheet Extruder

Main motor power 37kw
Minor motor power 22kw
Main screw φ105
Minor screw φ80
Calendar roller diameter 300mm
Sheet thickness 0.3-2mm
Output 185kg/h
Total power 110kw
Machine size 10.5×4.2×2.2m3
Weight 8.0T

Jianda Machinery Company is an experienced 2 layer plastic sheet extruder manufacturer and supplier in China. It was built in 1983. Our products have obtained CE certification, and have been exported to India, Russia, Spain, Italy, Thailand and many other countries. Besides 2 layer plastic sheet extruders, we can also offer automatic 2 layer stretch film extruders, compound PE air bubble film machines and other products. If you are interested in any of our plastic machines, please contact us. Thank you.
