Air Bubble Film Bag Making Machine

JDQB-800/1000

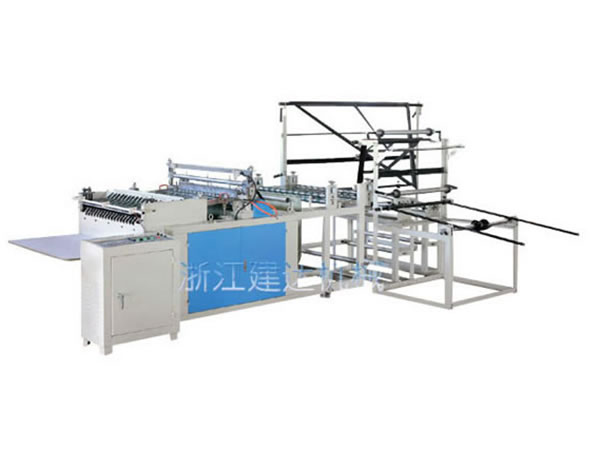

Air Bubble Film Bag Making Machine
Inquiry

Applications:

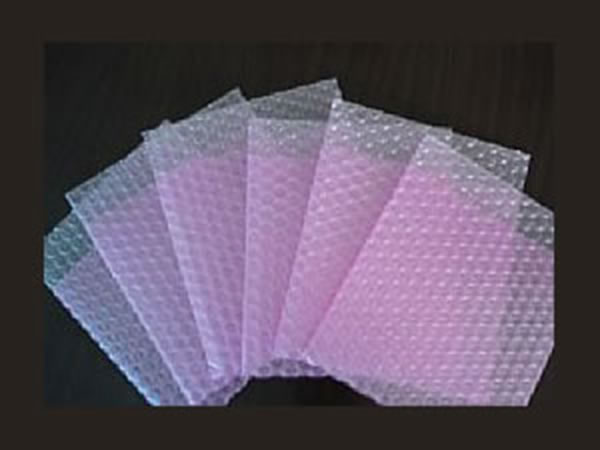

JDQB-800/1000 air bubble film bag making machine is applicable for producing bubble bags utilizing bubble films as raw material. Produced bubble bags are widely used in packaging industry.

Feature of Air Bubble Film Bag Making Machines:
1. Strong sealing capacity and high production efficiency.
2. Convenient to use, easy to adjust speed and stable running.
3. Various side seal bags and break-point bags are available.

Technical Parameters of Air Bubble Film Bag Making Machine:

Model JDQB-1000 JDQB-800
Max.width 950mm 750mm
Max.length 800mm 800mm
Capacity 20-120pcs/min 20-120pcs/min
Power 4.0kw 3.2kw
Weight 2000kg 1500kg
Power supply 220V 1PH 2LINE 50HZ 220V 1PH 2LINE 50HZ
Dimension 4500*3000*1950mm 4400*2800*1750mm

Jianda Machinery Company is a professional air bubble film bag making machine manufacturer in China. Since its inception in 1983, Jinda has been engaged in the research and manufacture of various plastic machines. Our main plastic processing machinery includes blow film machines, film extruders, bag making machines, drinking straw making machines, air bubble film machines and so on. They are designed with high-quality, stable performance, reasonable price and are widely used in Malaysia, Turkey; Russia, Spain, Nigeria, Brazil, Argentina and other countries. If you have any questions, please feel free to contact us. We will give reply within the shortest possible time. Thank you!
