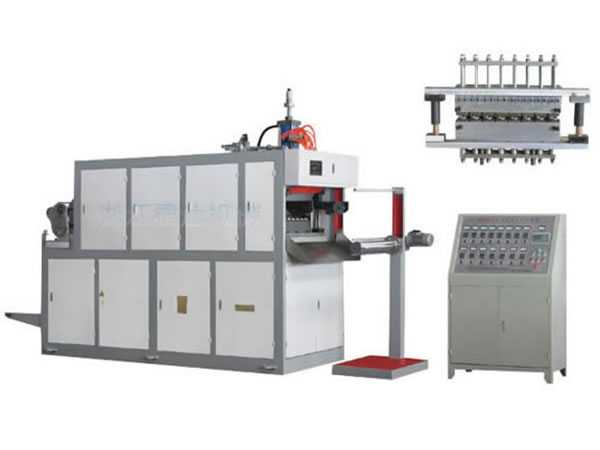

Plastic Cup and Tray Thermoforming Machine

JD660B

Description of JD660B Plastic Cup and Tray Thermoforming Machine:

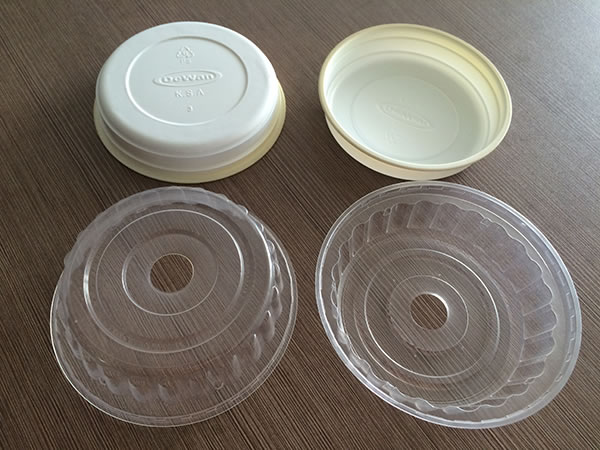

JD660B series plastic cup thermoforming machine and plastic tray thermoforming machine is applicable for producing various disposable plastic vessels, such as tea cups, milk cups, jelly cups, instant noodle bowls, etc.
It can finish producing plastic cups and trays at one time, from sheet feeding, heating, stretching, forming and edge cutting. This plastic thermoforming machine is widely used for producing plastic containers made of PP, PE, PS and ABS.

Features of JD660B Plastic Cup and Tray Thermoforming Machine:
1. Our microcomputer controlled plastic cup and tray thermoforming machine features either fully automatic or semi-automatic operation.
2. This thermoforming machine has such advantages as wide applications, stable performance, easy operation, high rate of qualified products and low noisy.

Technical Parameter of Plastic Cup and Tray Thermoforming Machine:

Sheet width 300-660mm
Sheet thickness 0.3-1.5mm, 1.0-5.0mm
Max. forming area 620×220mm
Max. forming depth 120mm
Max. diameter of sheet roll 700mm
Main motor power 7.5kw
Winder motor 0.55kw
Heating power 64kw
Sheet feeding motor 2.2kw
Working gas pressure 0.7Mpa
Revolution of main motor 20-40mould/min
Dimension 3100×1500×2300mm
Weight 4.2T

Jianda Machinery Company is an experienced plastic cup and tray thermoforming machine manufacturer and supplier in China. Our company was founded in 1983. We have obtained ISO9001: 2000 certification for our products.
In addition to thermoforming machines, we can also provide three layer rotary die head blow film machines, compound PE air bubble film machines, drinking straw making machines, and more. Thanks to good quality, low price, these products are sought after in Malaysia, Russia, Italy, Colombia and other countries. We have won full affirmation and recognition of customers. Welcome to purchase.
