High Speed Plastic Sheet Extruder
Description

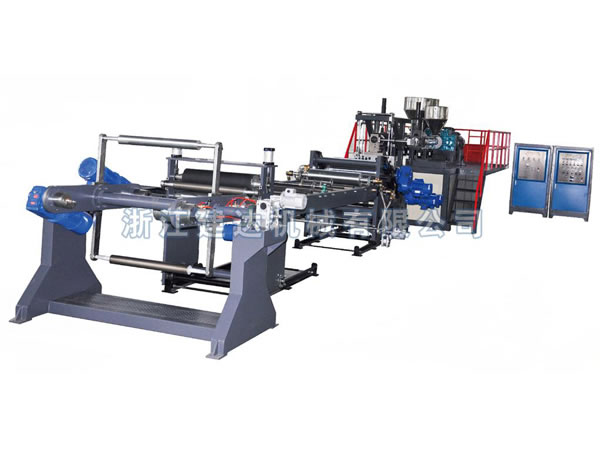

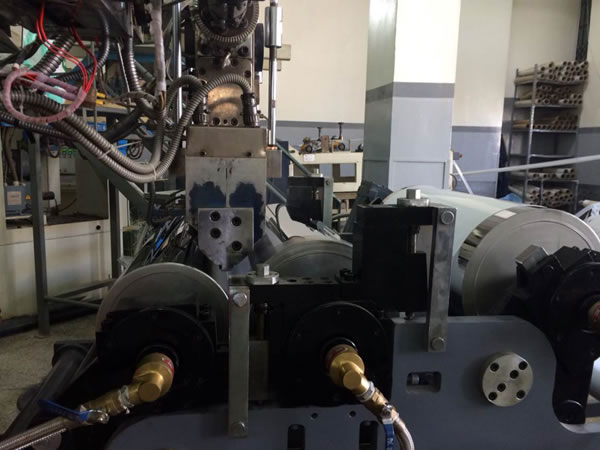

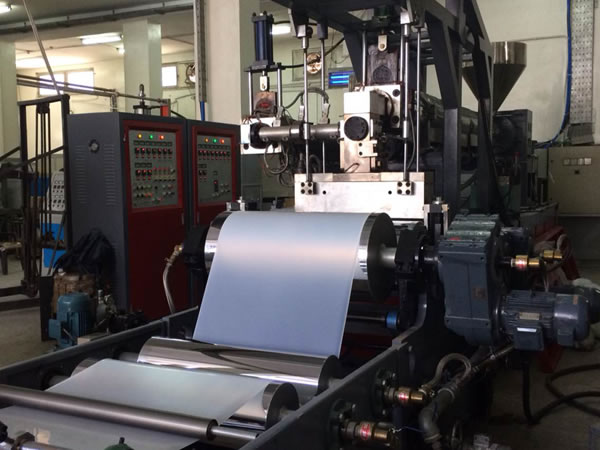

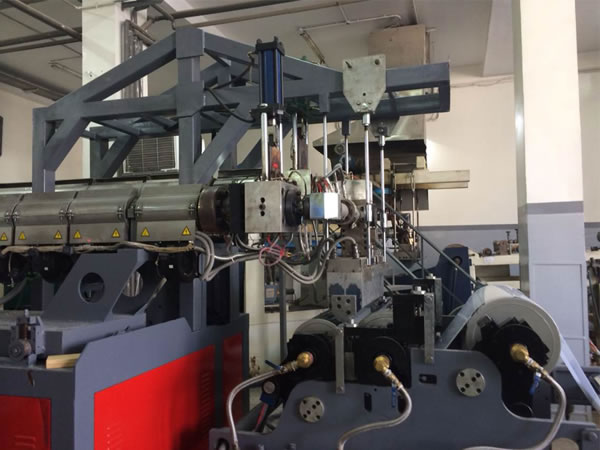

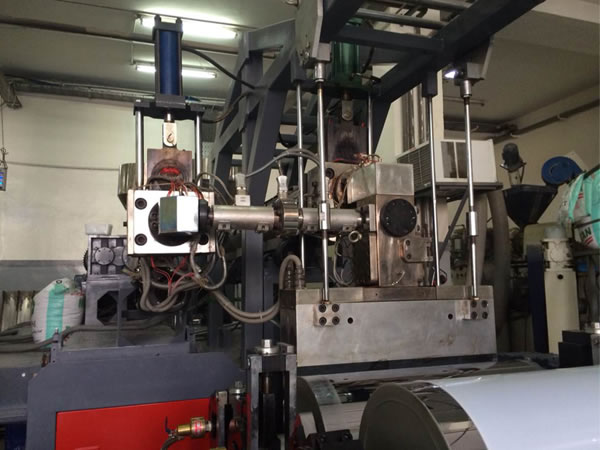

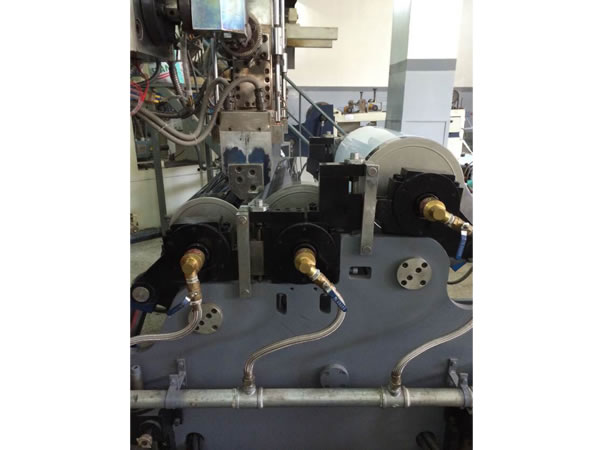

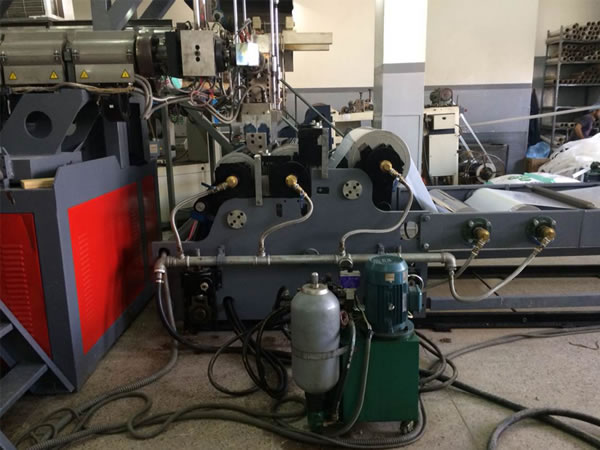

This high speed plastic sheet extruder is developed based on model JDSP-105 series, which has larger production capacity of 200kg-250kg/hour, it is mainly used to make PP, PS and PE plastic sheet. The plastic film extrusion machine adopts three roll calender for forming the plastic sheet. Rollers are perfect chromed and polished, the high hardness alloy screw and barrel are used to insure the production quality.
Technical Parameters
| Model | JDSP-110 | JDSP-110/60 |
| Screw Diameter(mm) | Ø110 | Ø110/60 |
| Sheet width(mm) | 720 | 720 |
| Sheet Thickness(mm) | 0.3-2.0 | 0.3-2.0 |
| Output(kg/h) | 200 | 250 |
| Main Motor Power(kw) | 75 | 75/22 |
| Power(kw) | 105 | 135 |
| Weight(kg) | 7000 | 8000 |
| Dimension(m) | 16*3.5*3.2 | 16*4*3.2 |
