Plastic Sheet Extruder

JDSP-105

Application of JDSP-105 Plastic Sheet Extruder
Designed based on national and international advanced technologies, our plastic sheet extruder integrated the functions of PP extruders, PE extruders and PS extruding machines. As a result, our plastic sheet extruder can be used for producing various plastic sheets, like PP, PE and PS sheets. These plastic sheets are regularly used to be made into packaging vessels, including drinking cups, ice-cream cups, jelly cups, and more.

Features:

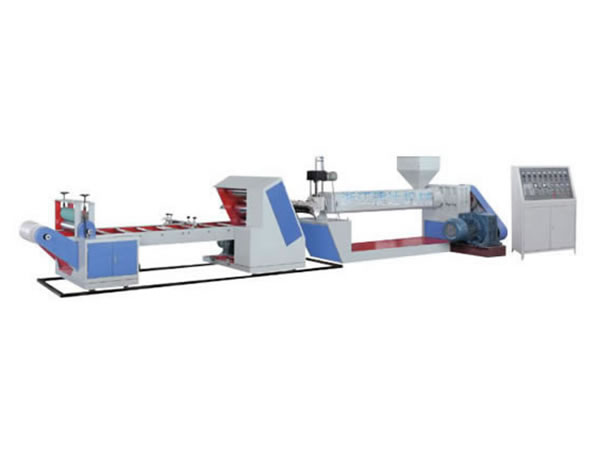

1. This plastic sheet extruder is composed of an extruder, a calender, a winder, and an electric control cabinet.
2. High quality nitrogen treated alloy steel (38CrMoAlA) is adopted to make screws and cylinders to ensure perfect hardness, anti-corrosion and long service time etc.
3. In order to ensure uniform thickness and smooth surface of sheets, the flow channel in die head is designed in coat-hanger style.
4. Water cycle cooling guarantees a good cooling effect.
5. The mesh changer and the cylinder are controlled separately.
6. Our plastic sheet extruding machines are CE certified.

Technical Parameter of JDSP-105 Plastic Sheet Extruders:

Type JDSP-90 JDSP-105 JDSP-120
Sheet width(mm) 650 650 1400
Sheet thickness(mm) 0.3-1.5mm 0.3-1.5mm 0.5-2.0mm 1.0-5.0mm
Screw diameter(mm) 90 105 120
Main motor power(kw) 30 37 55
Total power(kw) 60 85 100
Weight 5.0T 6.0T 11.0T
Overall dimension 10.5m×3.2m×2.2m 10.5m×3.2m×2.2m 12m×3.8m×2.2m

Jianda Machinery Company is a professional plastic sheet extruder manufacturer and supplier in China. We have 28 years of production experience for this kind of machines. We have obtained ISO9001: 2000 certification. Our products have been exported to Thailand, Russia, Italy, Nigeria, and many other countries. We are fully capable to produce a comprehensive range of high-quality plastic processing machines to meet customers' different demands, such as blow film machines, drinking straw making machines, air bubble film machines and so on. Welcome to visit our company. If you have any questions, please contact us.
