Casting Plastic Sheet Extruder

JDLYSP-105

Designed based on advanced plastic-machinery production technologies, JDLYSP-105 series casting plastic sheet extruder can be used to produce PP plastic sheets, PE plastic sheets and PS sheets, and more.
The thickness of finished cast sheet is 0.08-0.6mm. Low thickness sheet is widely used for vacuum forming, also for making stationery, etc.

Features of Casting Plastic Sheet Extruder:

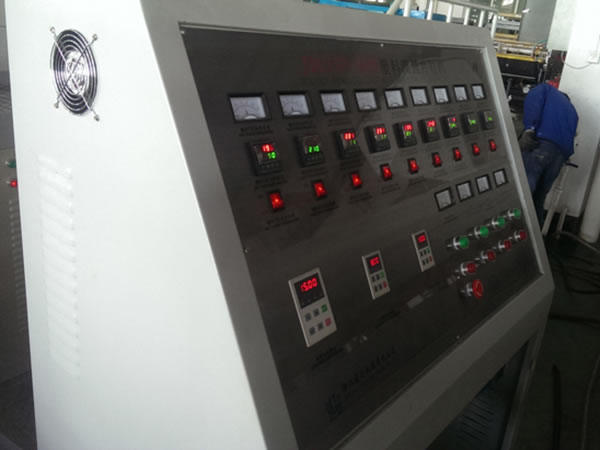

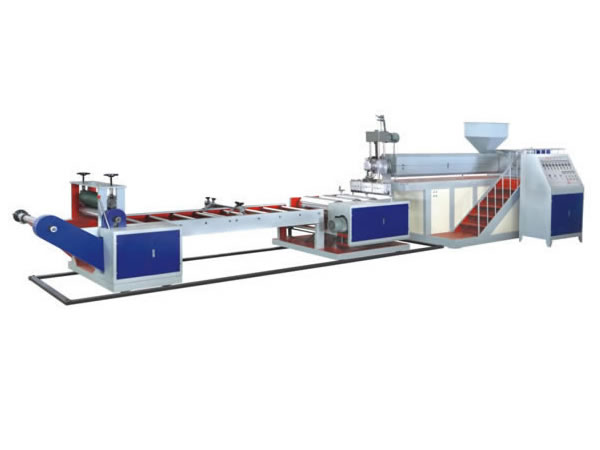

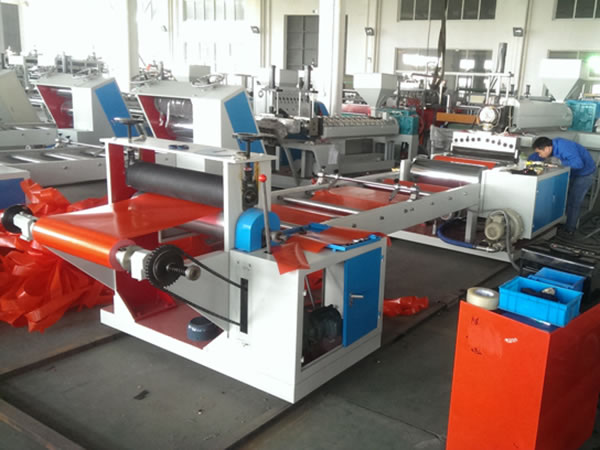

1. This casting plastic sheet extrusion line is composed with an extruder, a calender, a winder, as well as an electric control cabinet.
2. Nitrogen treated alloy steel (38CRMOALA) is adopted to make screws and cylinders to ensure perfect hardness, anti-corrosion and long lifetime, etc.

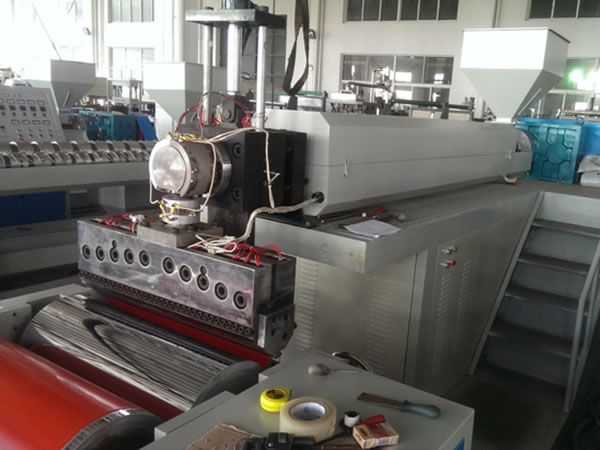

3. In order to ensure uniform thickness and smooth surface of sheet, the flow channel in die head is designed in coat-hanger style.

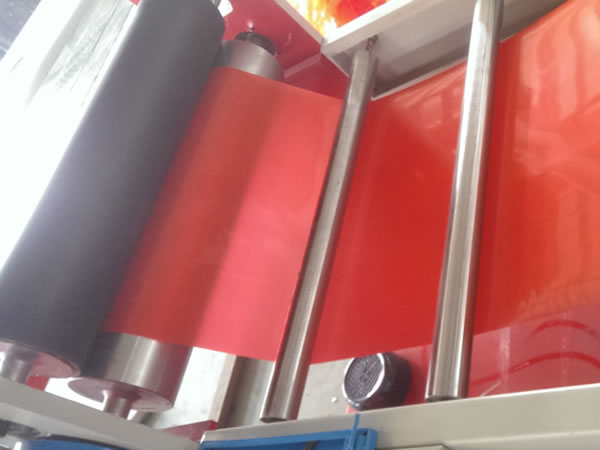

4. The cycle water inside the calendar achieves an excellent cooling effect.

Technical Parameter of Casting Plastic Sheet Extruder:

Model JDLYSP-90 JDLYSP-105
Sheet width(mm) 650 650
Sheet thickness(mm) 0.08-0.6mm 0.08-0.06mm
Screw diameter(mm) 80 125
Main motor power(kw) 37 45
Total power(kw) 60 100
Weight 5.0T 6.0T
Overall dimension 11.5m×3.2m×2.2m3 11.5m×3.5m×2.2m3

Jianda Machinery Company is a main casting plastic sheet extruder manufacturer in China. The company has 28 years of production experience for plastic processing machinery. We can provide film extruders, blow film machines, air bubble film machines, among many other plastic machines. All our products have passed CE certification.
Thanks to stable performance, convenient operation and high quality, our plastic machines have been widely used in packaging industry for appliances, furniture, and electronic products and so on. Welcome global purchasers to contact us.
