Meltblown Line
(PP Melt Blown Fabric Machine)
The meltblown line is used to make PP melt blown fabrics meeting KN90-95 standard. The meltblown non-woven fabrics manufactured by the PP melt blown fabric machine can be used as the indispensable material of the face masks, air filters, and wiping cloths.

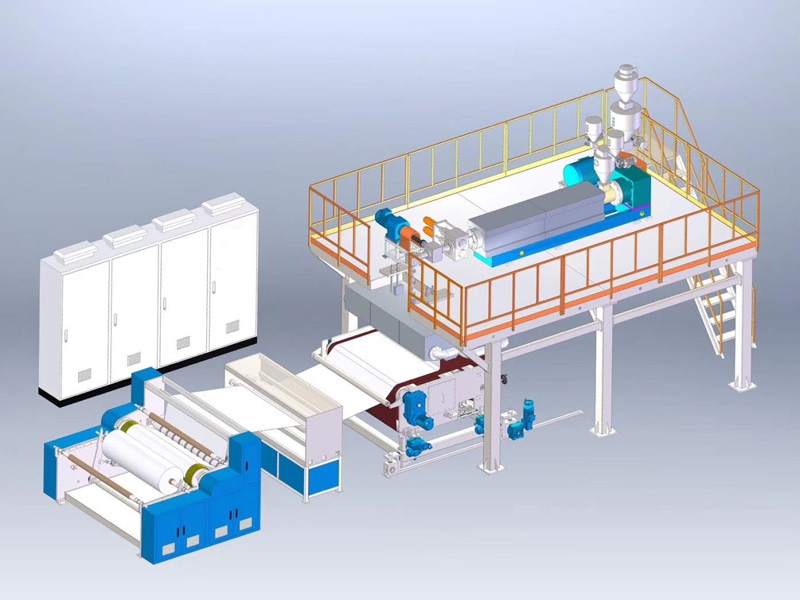

The meltblown line consists of feeding system, extruder, electric control cabinet, spinneret, inline winding & slitting, screen changer, meter pump, hot air system, roots blower, suction fan, etc.
Production Process of PP Meltblown Fabrics
- Raw material feeding
- melt extruding
- fiber shaping
- fiber cooling
- netting
- net reinforcement
- edge trimming & winding
Technical data
| Model | JD800-MB | JD1600-MB |
| Finished width | 800mm | 1600mm |
| Thickness | 20-80g/㎡ | 20-80g/㎡ |
| Fineness Variation | 2-5 micron | 2-5 micron |
| Working Speed | 0-40 m/min | 0-50 m/min |
| Max. Extrusion Capacity | 500kg/day | 1500kg/day |
| Total Power | 100kw (Working Power around 70KW) | 500kw (Working Power around 300KW) |
| Spinneret | Included | Included |
| Mould | Included | Included |
| N95 Electret | Included | Included |
Notes: The technical parameters are subject to change without prior notice due to product update.
-
