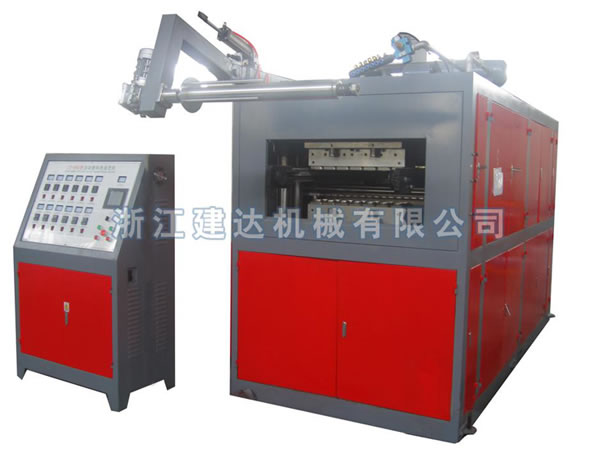

Plastic Thermoforming Machine

Plastic Thermoforming Machine

Description
Due to the customer demand of higher production capacity, we have developed the model JD680 on the basis of JD660B. This plastic thermoforming machine has the larger forming area of 680mm*300mm, the luxury model JD720 comes with the forming area of 720mm*350mm.

Technical Parameters
Model JD-680 JD-720
Sheet width 500~680mm 560~730mm
Sheer thickness 0.3~2.0mm 0.3~2.0mm
Max. forming area 680mm ×300mm 720mm ×350mm
Max. forming depth 120mm 135mm
Max. diameter of sheet roll 600mm 700mm
Main motor power 7.5kw 15kw
Winder motor 0.55kw 0.55kw
Heating power 86kw 123kw
Sheet feeding motor 2.2kw 3kw
Working gas pressure 0.7Mpa 0.8Mpa
Capacity 20-30cycles/min 20-30cycles/min
Dimension 3700mm ×2000mm×2700mm 3700mm ×2100mm×2700mm
Weight 4000kg 4800kg
Power supply 380/3/4 /50 ( Volt/Ph/Line/Hz ) 380/3/4 /50 ( Volt/Ph/Line/Hz )
Note: as the products are developing day by day, the technical data are subject to change without notice. Different size model can be custom-made.
