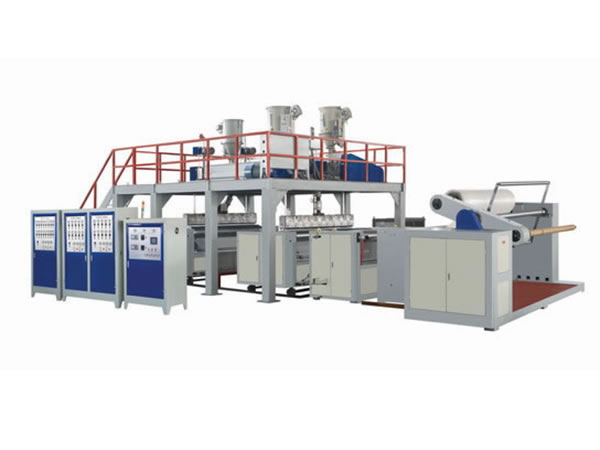

Compound PE Air Bubble Film Machine

Construction:

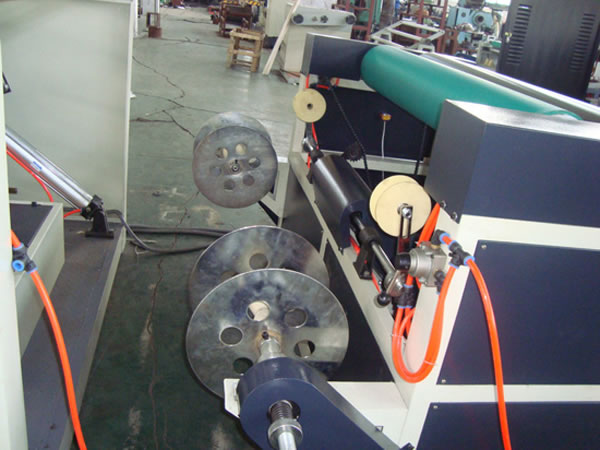

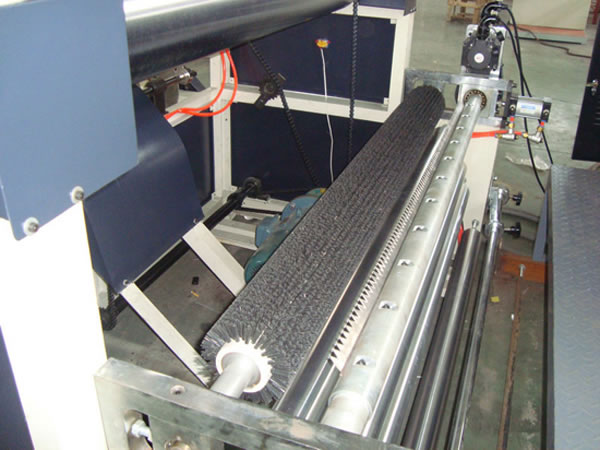

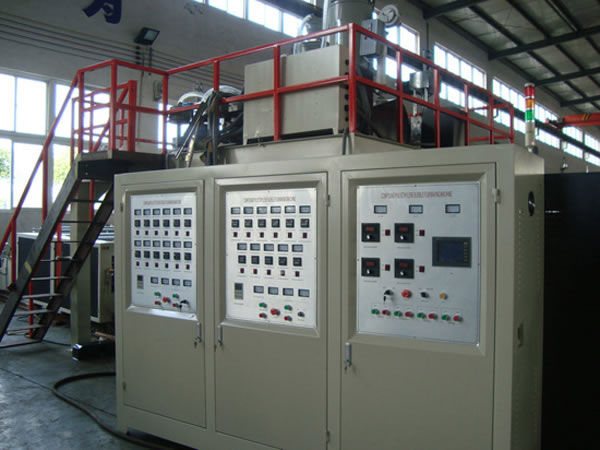

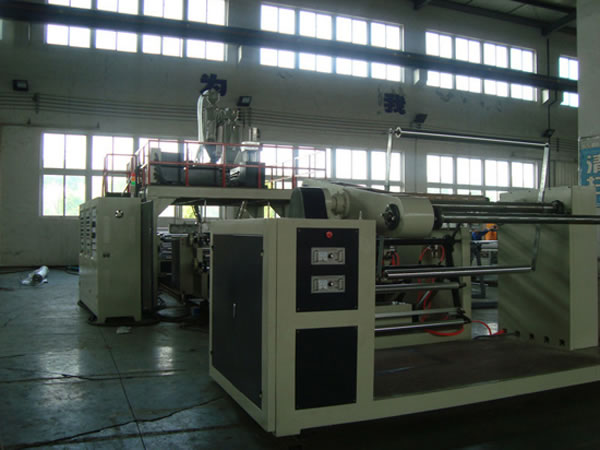

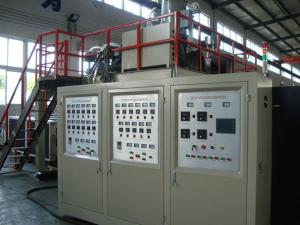

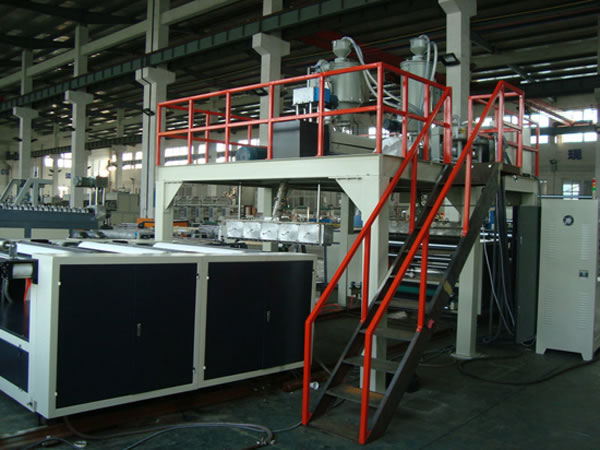

Our compound PE air bubble film making machine is composed of a extruder unit, air bubble forming device, perforation device, edge trimmed film collecting device, cutting device, winding device, and cabinet control system, etc.

Applications:

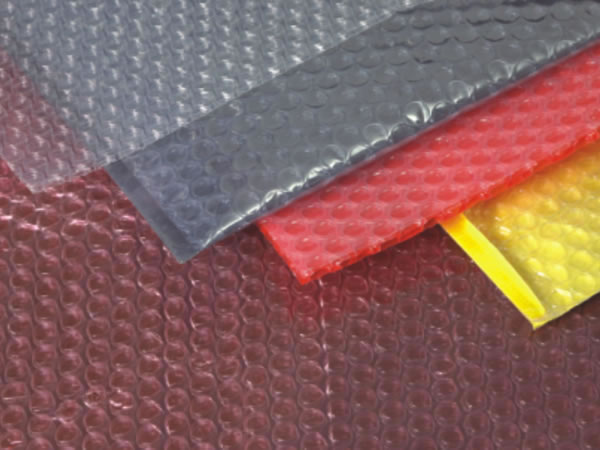

As it name suggests, a compound PE air bubble film making machine is mainly used for producing different types of air bubble films. Air bubble film, which is usually made of LDPE, features moisture proof, dustproof, anti-vibration and static prevention. They are widely used for packing electronics products, ceramic products, articles and glassware, and furniture, etc. Air bubble film is available in 4 universal bubble diameters: φ6, φ10, φ20 and φ30 mm.

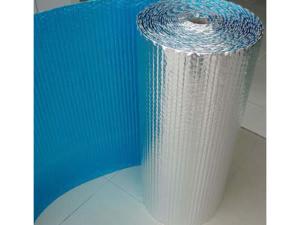

By laminating LDPE with aluminium foils, foamed PE sheets, or paper, etc., our air bubble film making machine can also be used for making air bubble films with sun shading and heat insulation functions. These compound air bubble films are widely used to be made into pouches, mailing envelopes, and more.

Features of Compound PE Air Bubble Film Making Machine:
1. Our compound PE air bubble film making machine is characterized by easy operation, stable performance, and long service life.
2. The structure of produced three-layer bubble film is film–bubble–film, and the structure of produced two-layer bubble film is one side flat and the other side with bubbles.
3. It is applicable for various kinds of materials, such as LDPE, LLDPE, and recycled PE.

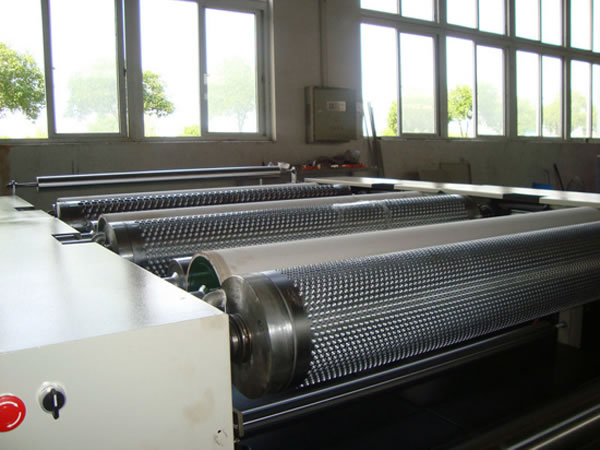

4. Can make variety specifications of bubble films from ø 6- ø 32, by changing the roller.
5. Variable frequency speed drive can greatly reduce energy consumption.

Technical Parameters of Compound PE Air Bubble Film Making Machine:

Model JDFPE-1500 JDFPE-2000 JDFPE-2500 JDFPE-3000
Main screw dia φ80mm φ90/80mm φ105/90mm φ110/100mm
Minor screw dia φ65 mm φ80 mm φ90 mm φ100 mm
Finished film width 1500mm 2000mm 2500mm 3000mm
Output 90 kg/h 110 kg/h 150 kg/h 200 kg/h
Main motor power 22kw 30/22kw 45/30kw 45/37kw
Minor motor power 15kw 22kw 30 kw 37 kw
Total power 122kw 200kw 243kw 263kw
Screw L/D 30:1 30:1 30:1 30:1
Power supply 380/3/4/50(Volt/Ph/Line/Hz)

Jianda Machinery Company is a professional compound PE air bubble film making machine manufacturer which has obtained ISO9001: 2000 certification. We can produce a wide range of air bubble film machines, such as PE air bubble film machines, air bubble film bag making machines, material distributor machines in air bubble film production lines and so on. These products are widely applied in packing industries for auto car, bicycle accessories, motorcycle, glass and ceramic products, crafts, gifts and furniture and so on.
In order to meet the customers' demands on other plastic machinery, we also provide film extruders, blow film machines, bag making machines and so on. Welcome global customers to buy and use our products.
