  3. JDCPE-120/60*2-1000 Three Layer Stretch Film Co-Extruder

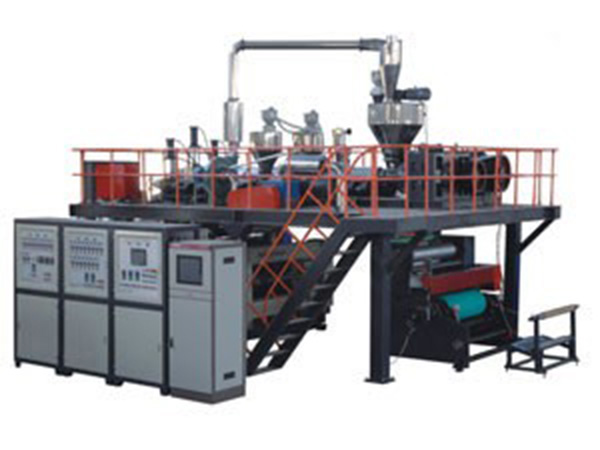

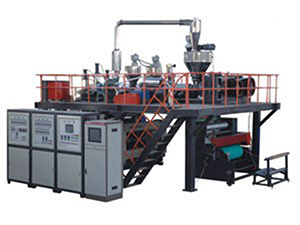

JDCPE-120/60*2-1000 Three Layer Stretch Film Co-Extruder

This series of three layer stretch film co-extruder is designed to produce stretch film using raw materials such as LDPE and LLDPE. The film produced is widely used for packaging of building material, auto parts, hardware, etc.

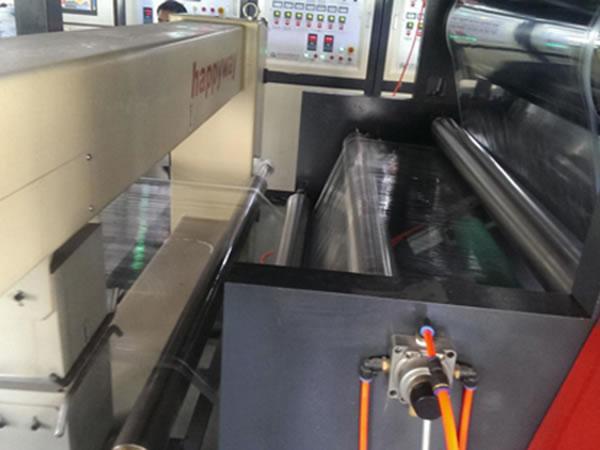

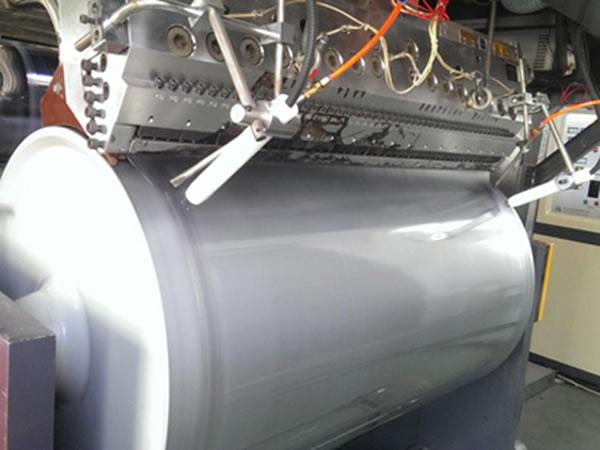

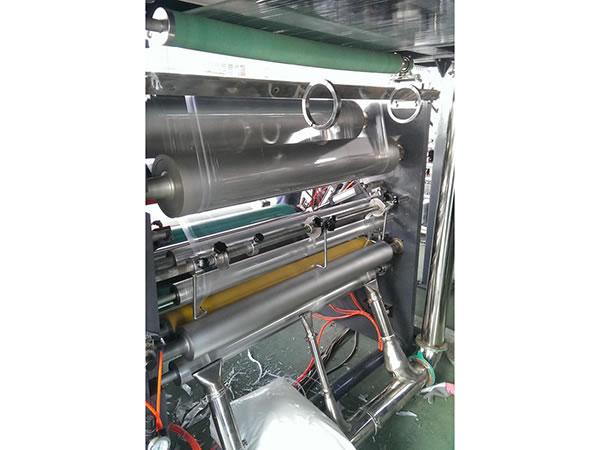

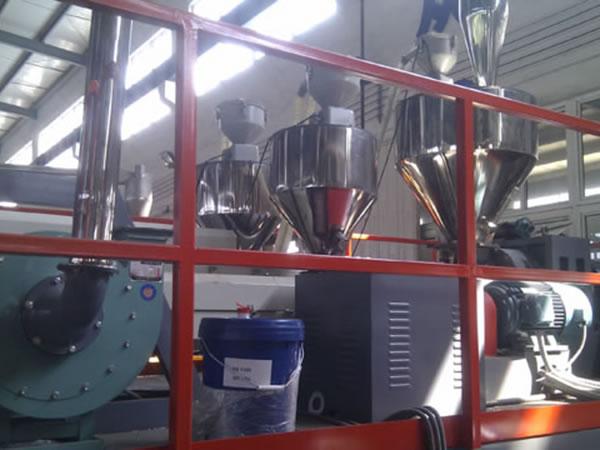

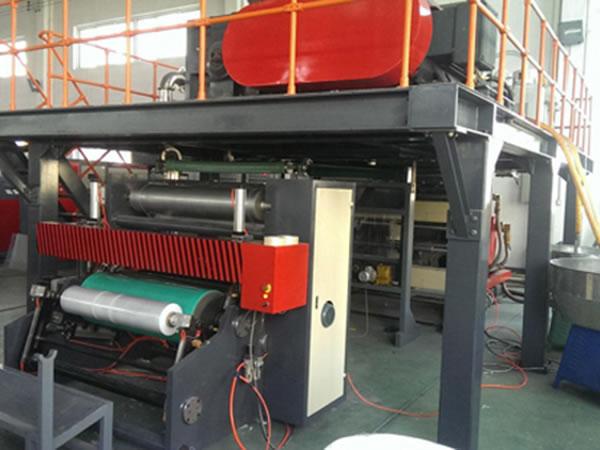

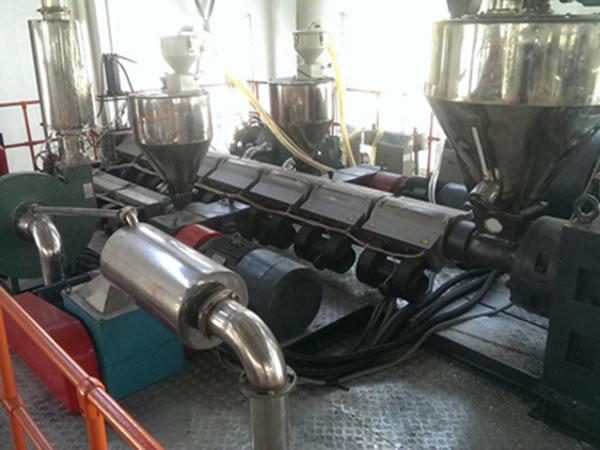

with 3 sets screws design, this plastic film extruder has characteristics such as low noise, and stable running. It is made up of the extruder, traction unit, edge trimming unit, PLC controlled winding unit, and finished roll automatic changing unit.

Technical Specifications

Model JDCPE / 120 - 60*2-1000
Screw diameter Φ120 / Φ60 / Φ60mm
Length / diameter ratio 34: 1
Finished film width 1000mm (500*2 rolls)
Max. linear speed 350m/min
Max. Output 290kg/h
Main motor power 110kw/22kw/22kw
Total power 306 kw
Overall Dimension 7290mm*5650mm*4000mm
Power supply 380 / 3 / 4 / 50 (Volt / Ph / Line / Hz)
