Our stretch film extruder is a kind of regularly used plastic film extruder in plastic industry. Generally speaking, a film extruding machine can be named in accordance with the film it produced. For example, LDPE film extruders are used for producing LDPE films, LLDPE film extruder for LLDPE films, and EVA film extruder for EVA films.

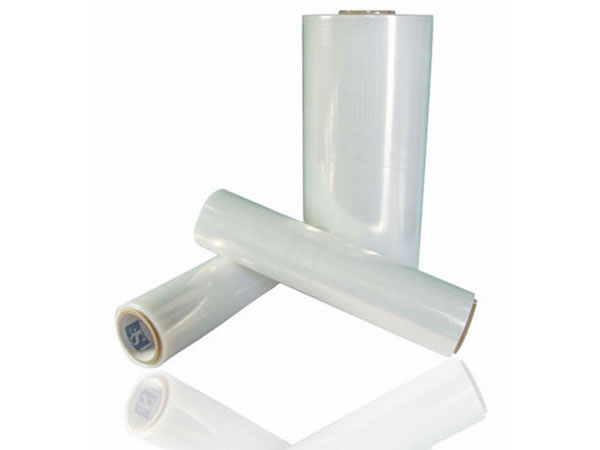

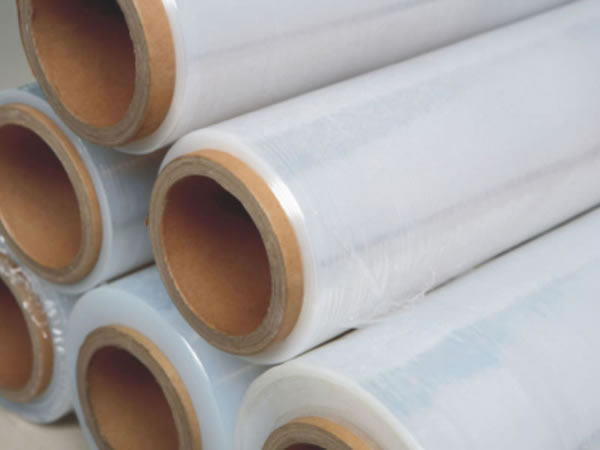

JDCPE-65×2 stretch film extruders are suitable for a variety of raw materials, such as PP, PE, PA, EVOH, EVA, and PC and so on. As a result, our stretch film extruders can be used to produce different types of cast films, like PA barrier, CPP and CPE. They can also be used for producing high barrier films containing EVOH, PA, etc. for food packaging industry, single-way stretchable films, and LLDPE, LDPE, EVA stretch films used as packing film, fresh-keeping film and adhesive film, etc.
They are applicable for producing cast films by utilizing LDPE and LLDPE. Produced films are extensively for packing building materials, auto parts, and hardware parts, and more.
JDCPE-65×2 stretch film extruder adopts double-screw and is characterized by stable performance, noise absorption, and PLC controlled winding.

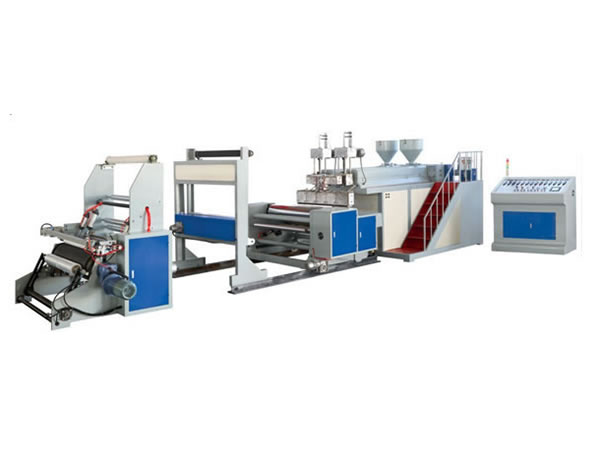

This plastic processing machine is composed of extruder unit, traction unit, leveling unit, edge trimming part, automatic duplex changeover part and so on. It is a fully automatic film extruding machine. This machine adopts two screws and human-machine interface to ensure stable performance and low noise.
Technical Parameters of JDCPE-65×2 Stretch Film Extruder:
|T-die width||1,250 mm|
|Finished film width||1,000mm|
|Finished film thickness||0.01-0.03mm|
|Max. extrusion output||100kg/h|
|Main motor power||18.5kw×2|
|Water consumption||0.5 m3/h|
|Power supply||380/3/4/50 (Volt/Ph/Line/Hz)|
Jianda Machinery Company is a professional stretch film extruder manufacturer and supplier in China. We have 28 years of experience in plastic machine manufacturing and have obtained ISO9001: 2000 certification. Our products have been exported to Malaysia, Bangladesh, India, Russia, Ukraine, Egypt, Nigeria, Sudan, South Africa; Mexico, Cuba and other countries. We are fully capable to produce a variety of high-quality film extruder, such as double layer film extruder, double layer stretch film extruder, and film casting extruder and so on. Welcome to visit our website. If you have any questions, please contact us.
