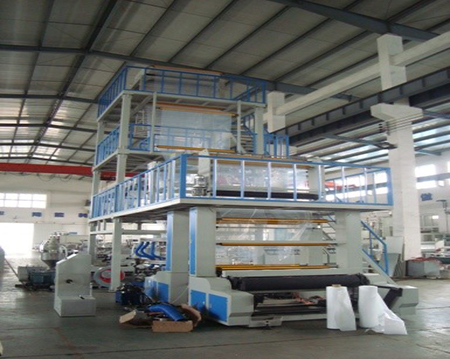

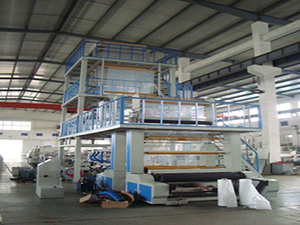

PE Blow Film Machine

PE Blow Film Machine

PE Blow Film Machines
JD-PE

Description of JD-PE Series PE Blow Film Machines:
JD-PE series PE blow film machines can be used for making LDPE or HDPE plastic films which are the raw material for making plastic bags.

Features of JD-PE Series PE Blow Film Machines:
Designed with compact structure and high production capacity, our blown film machines consume less energy. They are also characterized by simple operation.

Model JD-45/FM650 JD-50/FM850 JD-55/FM1100
Suitable material HDPE LDPE LLDPE
Film width(mm) 300-600mm 300-800mm 400-1000mm
Film thickness HD: 0.009-0.05mm LD : 0.02-0.15mm
Max-extrusion HD: 50 kg/hr LD : 60kg/hr HD : 60kg/hr LD : 80kg/hr HD : 75kg/hr LD : 95kg/hr
Extruder
Screw diameter(mm) φ45 φ50 φ55
Screw L/D length 30:1
Screw material SACM-645/38 CRMOALA
Cylinder material SACM-645/38 CRMOALA
Cylinder cooling 370w x 3 550wx3
Temperature control 3 zone
Average power consume (kw) 18 kw 26kw 31kw
Type of die
Die size (mm) φ60/80 φ80/100 φ100/120
Temperature control 3 zone
air blower(kw) 1.5 kw 2.2 kw 3 kw
Air ring 1
Take–up unit
Die width(mm) φ165x650 φ165x850 φ165x1100
Effective width 600mm 800mm 1000mm
Height adjustable type 800mm
Take-up speed 10-100
Take-up motor 0.75kw 1.5kw 1.5kw
Winding unit
Type Surface friction type
Winding motor(n.m) 6 N.M 8 N.M 10 N.M
Winding speed 10-100
Over dimension (m) 5.0 x 2.2 x 4.1m 50.X2.2X4.5m 5.5x2.5x5.2m

Jianda Machinery Co., is a professional manufacturer and supplier of PE blow film machines. We can produce a variety of specifications of blow film machines provided with high quality and at low price. They are highly recognized by our customers. All these products have exported to Malaysia, Bangladesh, India, Russia, Ukraine, Egypt, Nigeria, Sudan, South Africa, Mexico, Cuba and other countries.
Please feel free to contact us if you want to know more information about our plastic machines, whether they are plastic film extruders, bag making machines, drinking straw making machines, or any other one.
